Precision Engineering Meets Artistry: Crafting a High-End Custom Aluminum Keyboard

In the niche but fiercely competitive world of custom mechanical keyboards, one designer dared to reimagine luxury. Their vision? A keyboard that blended aerospace-grade precision with the elegance of a luxury timepiece—targeting enthusiasts willing to pay a premium for both form and function. When they approached our CNC machining center, their challenges were as intricate as their designs: complex internal geometries, flawless finishes, and a race against time. Here’s how we turned their ambition into a tactile masterpiece.

**The Client’s Quest: A Keyboard That Feels “Alive”**
The client, a boutique design studio known for pushing boundaries in the custom keyboard market, had already captivated audiences with their innovative layouts and RGB lighting systems. However, their previous prototypes, crafted from plastic and lower-grade metals, lacked the weight, durability, and “heirloom quality” demanded by high-end buyers.

Their new design required:
- **A Featherlight Yet Durable Frame**: To house a labyrinth of Cherry MX switches, wireless charging modules, and programmable RGB LEDs—all within a 12mm profile.
- **A Mirror-Smooth Finish**: With a custom “Midnight Obsidian” anodized color (Pantone 19-4005 TPX) and a barely-there matte texture for grip.
- **Branding Subtlety**: A micro-engraved logo visible only under specific lighting angles.
- **Speed**: A functional prototype within 24 hours to meet a critical investor demo.

**The Hurdles: Where Engineering Met Art**
While aluminum (6061-T6) was the obvious choice for its strength-to-weight ratio, machining it to the client’s standards posed unique challenges:

1. **Internal Chaos, External Calm**
   The keyboard’s interior resembled a 3D puzzle: channels for LED diffusers needed ±0.03mm accuracy to prevent light bleed, while mounting points for hot-swappable switches required thread tolerances tighter than a Swiss watch. Even a 0.1mm deviation would misalign components.

2. **The Anodizing Tightrope**
   Achieving the “Midnight Obsidian” hue meant balancing voltage, dye concentration, and sealing time. Too much current, and the black would turn murky; too little, and the undertones skewed blue—a dealbreaker for the client’s perfectionist audience.

3. **The 24-Hour Miracle**
   Traditional CNC shops quoted a 5-day lead time for prototyping. The client needed a working sample in 3 hours to test switch actuation and wireless connectivity.

**Our Playbook: 4-Axis Agility and Craftsmanship**
**Phase 1: Taming Complexity with 4-Axis Precision**

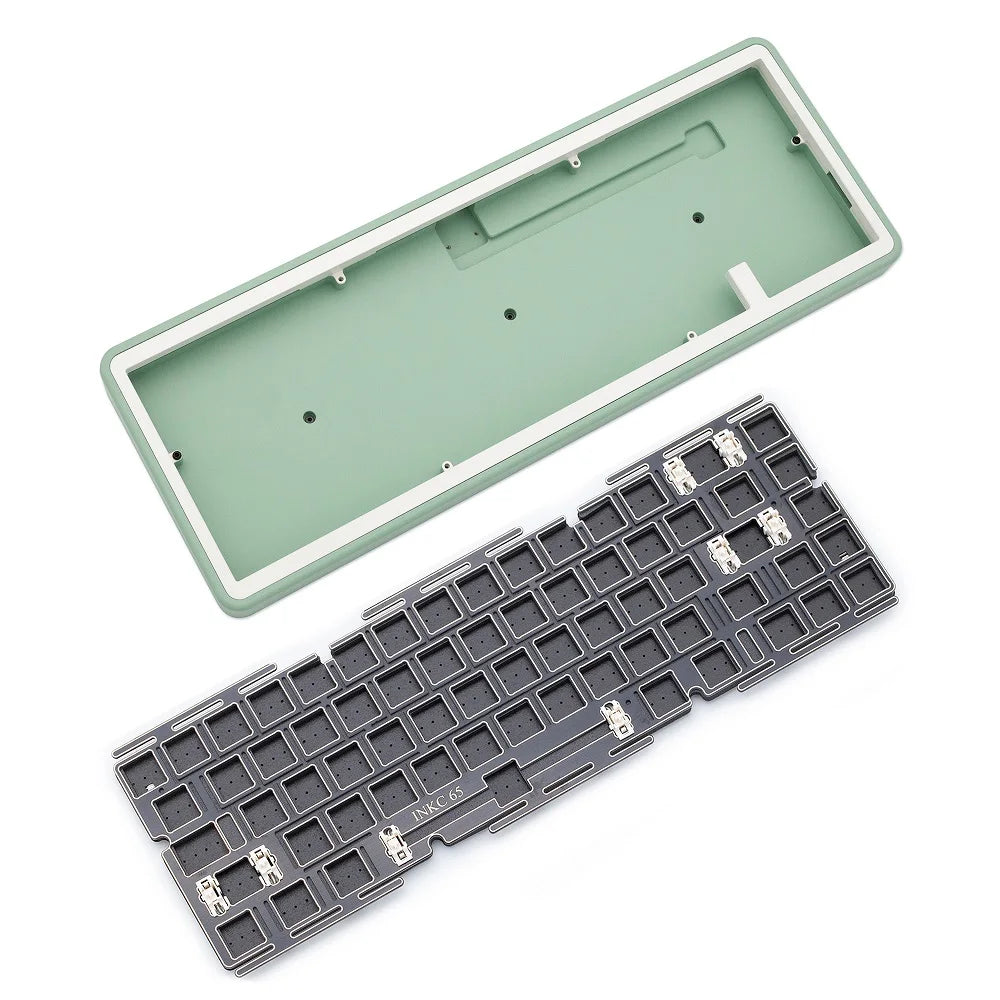

Using 4-axis CNC machines, we rotated the aluminum billet dynamically, machining overlapping cavities for switches and circuitry from multiple angles. This eliminated the need for secondary setups, ensuring perfect alignment between the USB-C port cutout and internal PCB anchors.

Critical steps included:
- **Trochoidal Milling for Delicate Channels**: Reduced tool stress while carving hair-thin LED pathways.
- **Thread Milling for Switch Mounts**: Achieved M3 threads with a mirror-like finish, allowing switches to seat silently.

**Phase 2: The 3-Hour Prototype Sprint**
To meet the client’s urgent demo deadline, we prioritized toolpath optimization:
- **High-Efficiency Roughing**: Used a 10mm carbide end mill at 15,000 RPM to remove 85% of material in 90 minutes.
- **Real-Time Adjustments**: Our machinists monitored harmonics to prevent chatter (vibration) during finishing passes, ensuring a glass-smooth surface off the machine.

By hour 3, the raw prototype was in the client’s hands—fully functional for switch testing.

**Phase 3: Anodizing Alchemy**
Our finishing team treated the aluminum like jewelry:
1. **Electropolishing**: Removed microscopic tool marks, creating a base as reflective as liquid mercury.
2. **Two-Stage Anodizing**:
   - First bath: 12µm layer for dye absorption.
   - Second bath: 5µm “hard coat” sealing for scratch resistance.
3. **Color Calibration**: Adjusted dye pH levels 3 times under spectrophotometer guidance to hit the exact “Midnight Obsidian” hue.

**Phase 4: Stealth Branding**
A 20W fiber laser etched the client’s logo at 0.2mm depth. Under direct light, it remained invisible; angled under RGB backlighting, it glowed faintly—a nod to the keyboard’s hidden tech prowess.

**Results: From Prototype to Status Symbol**
- **3 Hours to First Click**: The client demoed a working prototype the same day, securing $250K in pre-orders.
- **Zero-Rework Production**: Full-scale units shipped in 5 days, with 100% first-pass quality on anodizing.
- **Community Buzz**: Keyboard reviewers praised the “unboxing experience of a Rolex,” with the matte texture and weight (1.2kg) becoming viral talking points.
- **Client Growth**: The studio’s average order value rose 40%, with 70% of buyers adding custom engraving.

**Why This Matters for Your Project**
This case isn’t just about keyboards—it’s about **what’s possible when precision machining meets obsession**. Whether you’re designing medical devices or luxury audio gear, our CNC capabilities solve the unsolvable:
- **4/5-Axis Mastery**: For undercuts, thin walls, and organic shapes.
- **Materials Science**: We’ll guide you on alloy choices (e.g., 7075 vs. 6061 aluminum) for your application.
- **Speed You Can Trust**: 24/7 machining with live progress updates via our client portal.

**Ready to Transform Your Vision?**
Don’t let “impossible” tolerances or tight timelines limit your innovation. Let’s discuss how our CNC expertise can elevate your product from functional to unforgettable.

*Contact us today—where engineering becomes art.*
