Micro CNC Machining: Precision at Its Best

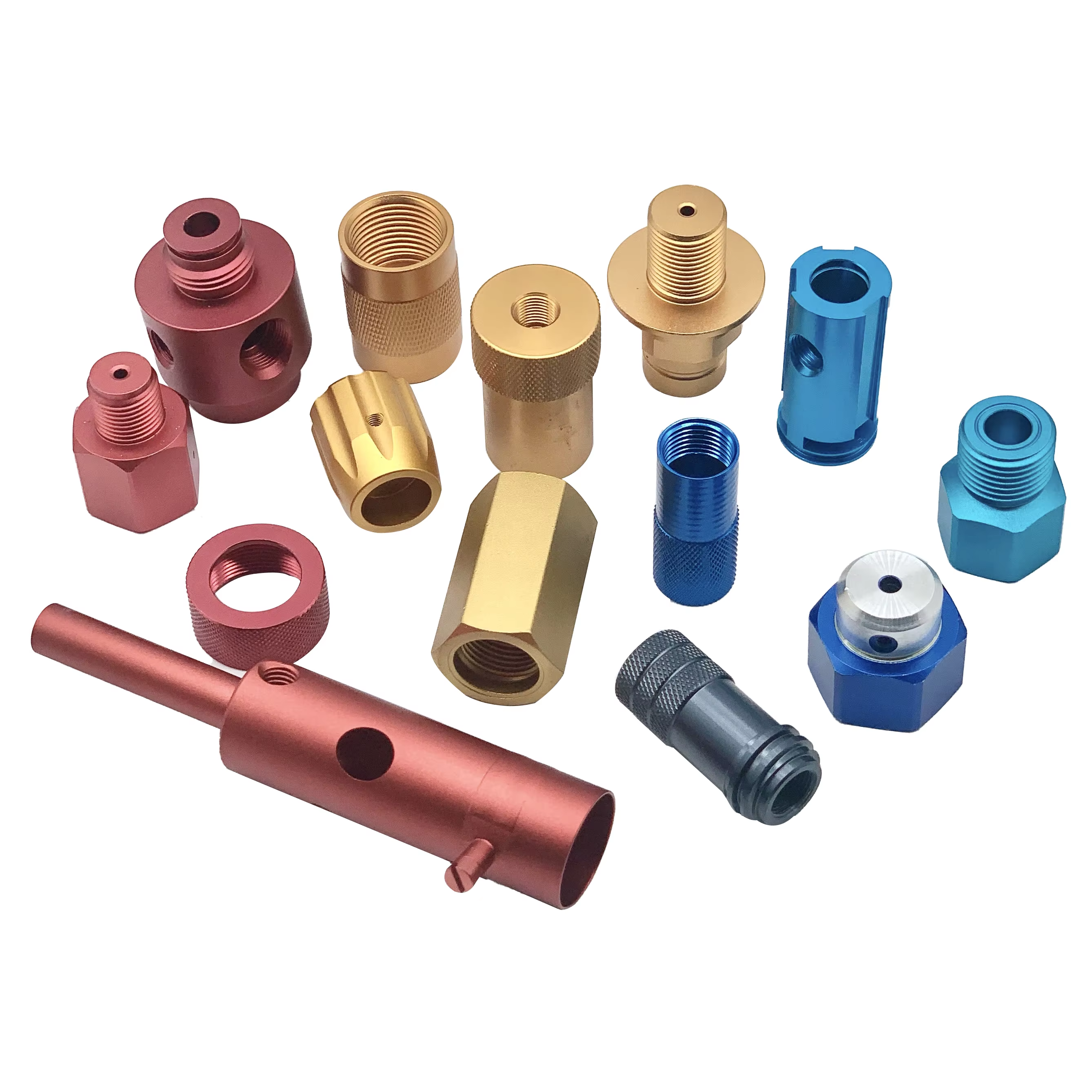

What Is Micro CNC Machining and How Does It Achieve Extreme Precision?

Defining Micro CNC Machining and Its Role in Precision Engineering and Tight Tolerances

Micro CNC machining, which stands for Computer Numerical Control, is basically a super precise way of making tiny parts where dimensions can get down to around 10 microns or 0.01mm. This level of detail allows manufacturers to create all sorts of complex features we wouldn't be able to make otherwise, such as those tiny channels used in lab-on-a-chip devices or the textured surfaces needed for certain medical implants. The magic happens because these machines work with extremely fine cutting tools and spin at speeds over 50,000 revolutions per minute. What makes this technology stand out compared to regular CNC processes? Well, it can hit tolerances well below 1 micron. And when talking about surface finish quality, we're looking at something under 0.05 microns smoothness. That kind of precision matters a lot in industries like aerospace where even minor imperfections could lead to catastrophic failures, or in electronics where component fit needs to be spot on, and definitely in medical devices where patient safety depends on flawless execution.

How Micromachining Differs from Conventional CNC Processes

The key differences lie in scale, tooling, and environmental control:

Factor	Micro CNC Machining	Conventional CNC Machining
Tolerances	±1 micron or tighter	±0.1mm (100 microns)
Tool Diameter	0.1mm or smaller	1mm or larger
Spindle Speed	50,000+ RPM	15,000 RPM average
Thermal Management	Active cooling systems	Passive cooling

While conventional CNC focuses on material removal rate, micro CNC prioritizes minimizing tool deflection and thermal drift to maintain precision at microscopic scales.

The Science Behind Achieving Tight Tolerances in Micro-Machining for Small and Intricate Components

Three core elements enable sub-micron accuracy:

1. Tool Geometry: Diamond-coated micro-end mills resist wear and retain sharpness during high-speed cutting.
2. Vibration Control: Advanced dampening systems counteract oscillations that could introduce errors as small as 0.2 microns.
3. Thermal Stability: A 1°C temperature shift can expand aluminum by 23 microns per meter. Micro CNC machines use liquid-cooled spindles and climate-controlled chambers to suppress thermal drift.

These advancements support growing demand for miniaturized parts, with the global micromachining market projected to grow 6.5% annually (Precision Engineering Report, 2023).

Key Mechanical and Thermal Challenges in High Precision Machining Environments

Micro CNC machining faces distinct challenges:

• Tool Wear: A 0.1mm carbide tool drilling 100 holes in titanium may wear by 15%, requiring real-time feed adjustments.
• Material Behavior: At micro-scales, materials exhibit “size effects”—for example, stainless steel’s hardness can increase by 20% when machined below 1mm.
• Heat Dissipation: Cutting speeds over 300 m/min generate localized temperatures above 800°C, risking deformation. Multi-axis systems with hybrid cooling (air + mist) reduce thermal stress by 40% compared to traditional methods.

Overcoming these issues enables breakthroughs in minimally invasive surgery and satellite propulsion.

Core Technologies Enabling Advanced Micro CNC Machining

Multi-Axis CNC Machining Systems Enabling Complex Micro-Geometries

Five axis micro CNC machines can produce really intricate parts like undercuts, those tricky tapered channels, and tiny cavities measured in microns all in just one setup. The system works by moving both the cutting tool and the part itself around different axes, which cuts down on those little errors that build up when parts get moved between setups. For things like medical implants where there are these tiny intersecting tubes smaller than half a millimeter, this kind of machining makes all the difference. These systems hit pretty amazing levels of accuracy too, staying within plus or minus 2 microns for positioning, and delivering what's called Class 2 surface finish quality with roughness values below 0.8 micrometers. That level of detail is absolutely critical in healthcare applications where even the smallest imperfection could matter.

High-Speed CNC Machining and Its Impact on Surface Finish and Accuracy

When spindles hit around 60,000 RPM, they enable feed rates of approximately 15 meters per minute during micro-milling operations. This significantly cuts down on tool deflection and heat buildup while working with tough materials like hardened steel or titanium alloys. The result? Fewer burrs and less warping in precision parts such as fuel injector nozzles. For these applications, getting surface roughness below 0.1 micrometer Ra makes all the difference in how fluids actually behave within the component. Another benefit comes from high speed machining protocols that reduce chip load sizes. Tools smaller than 0.3 mm in diameter show about a 40 percent improvement in edge retention when compared to traditional milling methods, which matters a lot in micro manufacturing settings.

Innovations in Spindle Design and Vibration Control for Micromachining Stability

Active magnetic bearing spindles and self-balancing rotors suppress vibrations below 0.5 μm amplitude—critical for optical lens arrays requiring 10 nm form tolerances. Integrated coolant channels maintain thermal stability within ±0.1°C during extended runs, while piezoelectric actuators adjust tool position in real time based on data from in-spindle accelerometers.

Integration of Advanced Software, Simulation, and Automation to Enhance Precision

CAM systems based on physics principles, such as POWERMILL Micro, can simulate cutting forces even at high speeds around 25,000 RPM and with very small stepovers of about 0.02 mm. These simulations help predict when tools might break during work on delicate dental abutments. The system employs closed loop machine learning that actually makes adjustments to feed rates and spindle speeds while operations are running, relying on sounds emitted during machining. This results in an impressive first pass success rate of nearly 99.8% for making aerospace sensors, all within a tight tolerance range of plus or minus 1.5 micrometers. Automated tool changing mechanisms that repeat positions within just one micron also play their part in reducing mistakes made by humans, especially important during unattended overnight productions where no one is watching closely.

Essential Tools and Tooling Innovations in Micro CNC Machining

Small Diameter Boring Tools for Micro-Machining: Performance and Limitations

Miniature boring tools down to 0.1 mm play a critical role when making those tiny precision holes and cavities needed for micro components. These tools can produce incredibly smooth surfaces with finishes under Ra 0.4 microns, though there are definite limitations. The problem gets worse when working with harder materials like titanium compared to aluminum where tool deflection jumps by around three times. Heat management becomes another major concern since even slight temperature changes can warp delicate parts with tight tolerance requirements of plus or minus 2 microns. According to recent findings from the 2024 Tooling Performance Report, sub 0.1 mm tools need extremely slow feed rates - below 0.002 mm per revolution actually - just to stay intact during operation. Although these tiny tools work well enough for plastic components and softer metals, most manufacturers find themselves stuck when trying them on hardened steel unless they invest in special coating technologies first.

Material-Specific Tooling Advancements in Precision Manufacturing Applications

• Carbide composite tools with nano-grained substrates extend tool life by 40% in aerospace-grade aluminum
• Diamond-coated end mills reduce friction by 60% when cutting carbon fiber-reinforced polymers
• Ceramic hybrid tools enable dry machining of Inconel 718 at speeds over 15,000 RPM

These innovations help close the 72% efficiency gap between conventional and micro-scale machining identified in 2023 material science benchmarks.

Tool Wear Monitoring and Lifecycle Management in High-Precision Environments

Acoustic emission sensors working in real time can spot when tools are wearing down with around 95% accuracy. These sensors kick off automatic tool changes long before any deviation goes beyond 1.5 micrometers. The adaptive lubrication systems out there today actually change how thick the coolant is depending on what kind of cutting force is being applied. This helps cut down thermal deformation problems in medical grade stainless steel by roughly a third. There are machine learning models now that have been trained using data from more than 50,000 different tool wear patterns. They can tell when a tool needs replacing within about plus or minus two hours. For manufacturers making those tiny microfluidic lab on chip devices, this kind of predictive maintenance means no unexpected stoppages during production runs.

Critical Applications of Micro CNC Machining Across Industries

Micro CNC machining is indispensable in industries requiring microscopic precision and repeatability, from life-saving medical devices to aerospace systems operating in extreme environments.

High Precision Machining for Medical Devices: Implants, Surgical Tools, and Diagnostics

With Micro CNC technology, we can create orthopedic implants that match bone structure at around 50 to 200 microns of porosity, plus make surgical instruments featuring cutting edges under 100 microns. The system achieves really tight tolerances of about plus or minus 2 microns for parts used in diabetes sensors, which helps keep glucose readings accurate down to about 0.1 mg per dL. When it comes to dental applications, tests showed something interesting too. Drill tips made using those tiny 0.3 mm diamond coated end mills gave patients nearly double the comfort compared to regular tools according to recent clinical studies. That kind of difference matters a lot in actual practice settings.

Precision Manufacturing in Aerospace: Fuel System Components and Sensors

Engineers use 5-axis micro CNC to fabricate fuel injection nozzles with 80-micron orifices, boosting combustion efficiency by 12% in next-gen turbine engines. Sensor housings made from Inconel 718 maintain <0.5μm surface roughness after 1,000 thermal cycles (-60°C to 300°C), contributing to a 4.7-liter/hour reduction in fuel consumption across commercial fleets.

Electronics Miniaturization Enabled by Micro-Machining and Precision Engineering

As consumer electronics shrink, micro CNC machines smartphone SIM tray slots with 0.05mm positional accuracy and micro-USB port mold cavities requiring <1μm concentricity. It also fabricates 0.2mm-thick aluminum heat sinks with 150 micro-fins/mm², enhancing thermal dissipation by 22% in 5G base stations.

Case Study: Fabricating a Microfluidic Device Using Micro CNC Machining

A diagnostics manufacturer machined a PMMA microfluidic chip containing 64 parallel channels (75±3μm wide, 120μm deep) using a 100μm carbide end mill at 45,000 RPM. The process achieved <0.8μm surface roughness, crucial for fluid control. In clinical testing, the device reduced COVID-19 test processing time from 90 minutes to 12 minutes.

Quality Assurance and Metrology in Micro CNC Machining Processes

With micro CNC machining, manufacturers can get down to tolerances around ±1 micron thanks to built-in quality checks and sophisticated measuring tools. The system constantly watches for issues like spindle vibrations (keeping them under 0.5 microns) and monitors tool temps within half a degree Celsius. When making parts for things like surgical instruments or aircraft engines, this real time feedback lets operators fix problems right away instead of waiting until after production. According to research published by NIST last year, facilities using these kinds of systems saw their dimensional errors drop by nearly two thirds when compared to traditional methods that only check parts after they're made.

Ensuring Tight Tolerances and Quality Control with Real-Time Monitoring Systems

Multispectral sensors detect tool wear as low as 5 µm/hour, while thermal imaging maintains workpiece stability within 0.5°C fluctuations. This dual approach prevents drift in sensitive applications like microfluidic channels and aerospace sensor housings.

Advanced Metrology Tools: From Optical Comparators to Atomic Force Microscopy

Post-machining verification uses non-contact measurement tools:

Tool Type	Resolution	Application Example
Coordinate Measuring	0.5 µm	Medical implant geometries
Atomic Force Microscopy	0.1 nm	Optical component surface roughness
White-Light Interferometry	3 nm Ra	Micro-mold texture analysis

These methods ensure compliance with AS9100 aerospace and ISO 13485 medical device standards.

Statistical Process Control in Prototype and Low-Volume Precision Machining Runs

For batches under 50 units, SPC analyzes surface finish (Ra ≤0.2 µm) and positional accuracy (X/Y: ±1.5 µm) using modified control charts. A 2023 JMP analysis showed SPC reduces defect rates by 41% in micro-machined electronics compared to traditional sampling.

FAQs

What is Micro CNC Machining?

Micro CNC machining is a computer numerical control process used to create extremely precise small parts with dimensions down to 10 microns, allowing for detailed features in various industries.

How does Micro CNC Machining differ from conventional CNC processes?

Micro CNC machining differs by achieving much tighter tolerances, using smaller tool diameters, higher spindle speeds, and employing active thermal management, compared to conventional CNC machining.

What industries benefit from Micro CNC Machining?

Industries such as aerospace, electronics, and medical devices benefit greatly from Micro CNC Machining due to its precision and ability to produce intricate parts with tight tolerances.

What are the challenges of Micro CNC Machining?

Challenges include tool wear, managing material behavior at micro-scales, and effective heat dissipation to avoid deformation during the high-speed machining process.

Why is thermal stability important in Micro CNC Machining?

Thermal stability is crucial because even minor temperature shifts can cause significant dimensional changes in materials, making precision machining at a microscopic scale more challenging.
