Micro CNC Machining: Tiny Parts, Big Impact

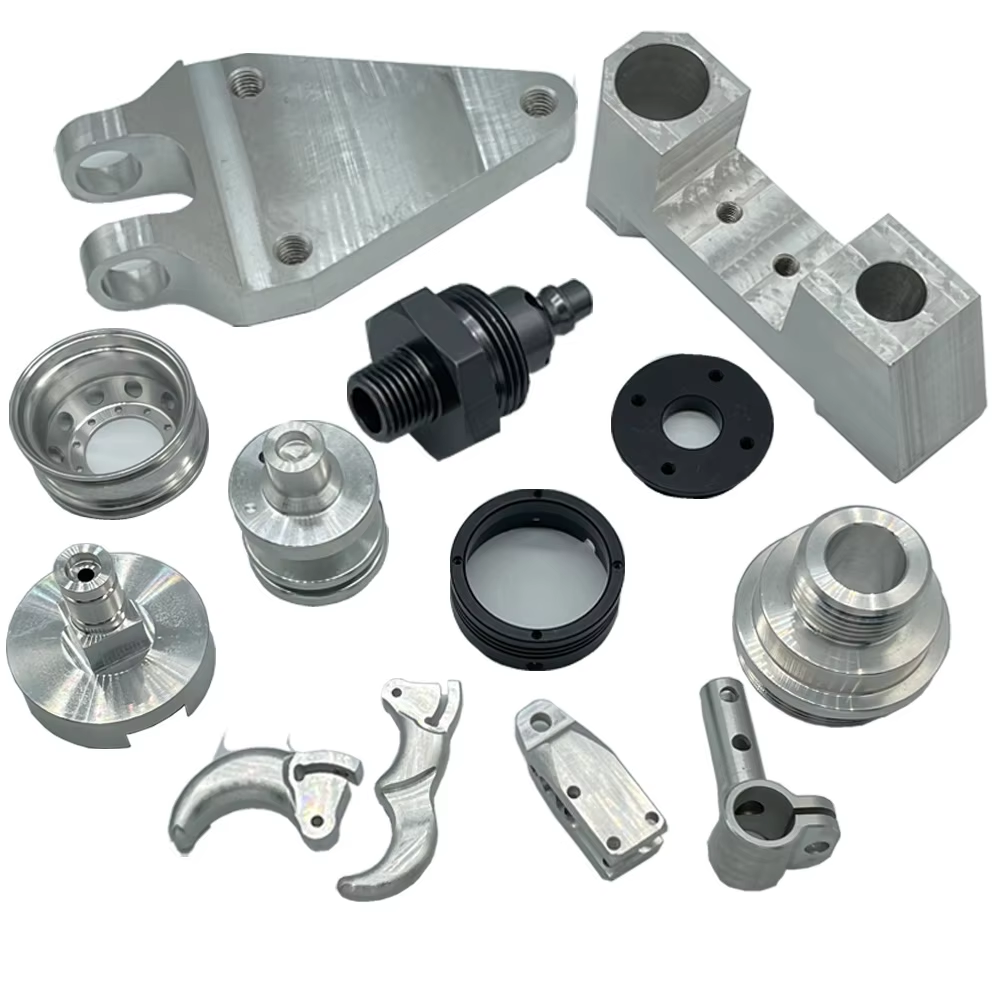

What Is Micro CNC Machining and Why It Matters

Definition and Core Principles of Micro CNC Machining

Micro CNC machining creates tiny parts with features below 1mm and can hit tolerances down to plus or minus 1 micron, which is basically 0.001mm. The technology brings together computer aided design software, super fast spindles spinning around 60,000 RPM, and teeny tools sometimes just 0.1mm across to carve out materials with incredible accuracy. Traditional CNC machines have trouble handling anything smaller than about 10mm, but micro CNC thrives on making complex shapes needed for things like the tips of surgical instruments or those delicate optical components used in high tech equipment. A recent look at the industry from 2023 shows that nearly 8 out of 10 medical device makers are already incorporating these micro machined parts into their prototypes and actual products these days.

The Growing Demand for Micron-Level Precision in Electronics and Medical Devices

When electronics and medical gear keep getting smaller, precision at the micron level just becomes essential these days. Take healthcare for example, where micro CNC technology creates bone screws with threading as fine as 50 microns and makes neural probes featuring channels down to 20 microns wide. On the electronics side, we're seeing machines drill those tiny 0.3mm holes in circuit boards and handle wafer-level semiconductor packaging work. Looking ahead, experts estimate the market for these super small parts might grow around 14% each year until 2030, mostly because hospitals want better tools for minimally invasive procedures and people are buying more wearables to track their health. Just think about pacemakers now needing surfaces smoother than 0.4 microns Ra, something regular manufacturing can't achieve without turning to micro CNC techniques.

How Micro CNC Enables Innovation Without Cleanroom Environments

Traditional micro manufacturing typically needs those expensive ISO Class 5 cleanrooms to keep particles out of the mix. But modern micro CNC systems have changed the game completely. They now come with built-in vibration damping platforms and can adjust for temperature changes on the fly, so manufacturers can do precision work right in regular labs or workshops instead of sterile environments. The cost savings are impressive too. Setting up a facility costs around $220k less these days according to Ponemon's research from last year, and this also speeds things up for product development. Take one medical equipment maker who switched to desktop micro CNC machines during the pandemic crisis. They needed molds for their microfluidic test kits fast, and managed to cut down the prototype process from what used to take three months straight down to just nine days flat.

How Micro CNC Machining Works: From CAD Design to Sub-Micron Accuracy

CAD/CAM Integration in Micro-Scale Part Programming

The process starts with detailed CAD models capable of capturing geometry details as small as 0.001 mm. CAM programs then convert these blueprints into specialized cutting paths designed specifically for work at this tiny scale. The system handles the extreme conditions involved too fast spinning spindles and incredibly slow movement rates. What makes this approach so valuable is how it automates the creation of intricate parts like channels just 0.2 mm wide or holes measuring only 0.05 mm in diameter. This automation ensures consistent results from one batch to the next while reducing the need for constant hands-on adjustments during manufacturing runs.

Precision, Tolerances, and Scale: Achieving ±1 Micron or Less

Achieving sub-micron accuracy relies on three core advancements:

• Nanometer-resolution linear encoders for real-time position feedback
• Thermal stability systems that limit expansion errors to 0.1 μm/°C
• Micro-tool deflection compensation algorithms adjusting cut depth by less than 0.5 μm

A 2023 precision engineering study found that 78% of micro-machined medical components now require sub-micron tolerances–up from 52% in 2018–highlighting the tightening demands of advanced applications.

High-Speed Milling and Advanced Motion Control for Micro Accuracy

At micro scales, traditional machining principles break down due to tool inertia and minimal chip load. Modern micro CNC systems use spindles up to 100,000 RPM and linear motors with 2 nm positional accuracy. Machining 316L stainless steel with 0.02 mm cut depths requires precise control of:

• Tool engagement angles within ±0.1°
• Cutting forces under 5 N to prevent micro-fractures
• Surface finishes below Ra 0.2 μm

These parameters ensure structural integrity and functional performance in sensitive applications.

Multi-Axis Micro Milling: Capabilities and Advantages in Complex Geometries

5-axis micro milling enables single-setup fabrication of highly complex parts, including:

• Lattice-structured implants with 150 μm struts
• Optics molds with angular precision under 0.005°
• Microfluidic chips containing over 500 channels of 75 μm width

By eliminating multiple fixturing steps, this method reduces cumulative alignment errors by 90% and cuts lead times by 40% for aerospace fuel injectors (Advanced Manufacturing, 2023).

Materials, Machines, and Hybrid Methods in Micro CNC Machining

Common Materials Used: Metals (Titanium, Stainless Steel), Plastics (PEEK, Ultem), and Composites

The micro CNC machining process works with all sorts of materials down to the micron level. In industries where reliability matters most, titanium and stainless steel dominate because they just don't break down easily and work well inside the body too. For those tiny electronic components that need to be light yet strong, aluminum gets the job done in creating micro housings. When it comes to stuff that needs to withstand harsh chemicals without changing shape, engineers turn to high performance thermoplastics such as PEEK and Ultem. These materials stay put even when things get rough, which explains why they show up so often in microfluidic systems. And let's not forget about carbon fiber reinforced composites or ceramics either. They handle the extreme demands of photonics equipment and MEMS technology where regular materials simply wouldn't cut it.

Types of CNC Machines: Micro Milling, Swiss-Type, Laser, and EDM

Specialized machines enable micro-scale precision:

• Micro milling machines use tools as small as 0.1 mm to create detailed 3D geometries.
• Swiss-type CNC lathes produce ultra-fine, slender components like catheter guides with ±0.0001" tolerances.
• Laser micromachining provides non-contact processing for brittle materials such as glass.
• Wire EDM removes material via electrical discharges, delivering burr-free edges in conductive metals.

Hybrid Techniques Combining Mechanical, Thermal, and Chemical Processes

Combining different techniques has proven better than relying on just one method for many manufacturing challenges. Take laser-assisted micromilling for instance it warms up those tough alloys first so the tools don't get worn out as quickly. Meanwhile, electrochemical machining works differently by basically melting away metal without putting any physical strain on the material. And then there's micro-EDM which creates tiny holes through controlled electrical sparks and special fluid flushing. We've seen this process make cavities around 5 microns in size for fuel injectors. When all these approaches work together, manufacturers can produce incredibly fine details sometimes as small as 2 microns in precision parts used in optics and semiconductors. The real magic happens when engineers figure out how to combine these processes effectively for their specific needs.

Case Study: CNC Micromilling for Microfluidic Mold Fabrication

One prominent manufacturer of medical equipment recently turned to 5-axis micro CNC milling when creating injection molds for those tiny polycarbonate microfluidic chips everyone's talking about lately. What they discovered was pretty impressive actually. The technique produced channels just 20 microns wide with surfaces so smooth they meet optical quality standards (Ra below 0.1 microns) without needing any extra finishing work afterwards. When stacked against traditional photolithography methods, their approach cut down on prototype development time by nearly two thirds. This has serious implications for the field. Micro CNC machining isn't just viable anymore it's becoming essential for companies wanting to mass produce diagnostic devices that require extreme precision but still need to hit market deadlines.

Challenges and Best Practices in High-Precision Micro Machining

Key Challenges: Tool Wear, Thermal Expansion, and Micro-Scale Deformation

Sub-1mm tools experience tool wear rates up to 300% higher than conventional machining tools. Thermal expansion contributes to 42% of dimensional errors–just a 1°C shift can distort geometry by 0.5 microns. Additionally, micro-scale deformation during cutting poses challenges, especially in thin-walled structures common in medical implants and MEMS.

Operator Expertise: Tool Selection, Setup, and Temperature Control

Getting good results really comes down to how well someone handles those tiny micro-tools. For carbide tools smaller than 0.3mm, keeping feed rates under about 50 mm per minute is pretty much essential if we want to avoid any unwanted bending or warping. When working with titanium specifically, diamond coatings make a big difference, extending tool life by around two thirds compared to regular tools. Temperature control matters too. Systems that can maintain within plus or minus 0.1 degrees Celsius help keep things stable and reduce problems from heat changes. And let's not forget about motion systems either. Those with resolutions down to 5 nanometers enable operators to make instant tweaks even during fast paced production runs, which makes all the difference in achieving consistent quality across batches.

Optimizing Machine Settings for Tight Tolerances (±0.0001 Inches)

To achieve ±0.0001-inch tolerances, adaptive spindle speeds (40,000–150,000 RPM) and 0.01μm step resolution are essential to suppress vibrations affecting surface quality below Ra 0.2μm. Toolpath algorithms use finite element analysis (FEA) models to compensate for micro-tool deflection. Integrating inline laser measurement systems increases yield rates by 18% through closed-loop feedback.

Balancing Precision with Equipment Complexity and Maintenance Demands

Maintaining sub-micron accuracy requires 35% more frequent recalibration than standard CNC systems. Daily maintenance–such as granite base leveling and encoder cleaning–reduces downtime risk by 52%. While hybrid micromilling and µ-EDM systems offer greater flexibility, their 2.3x higher operational complexity necessitates specialized technician training.

Applications and Future Trends in Micro CNC Technology

Industry applications: Medical devices, aerospace, electronics, and photonics

The micro CNC technology is really pushing boundaries in various industries these days. For instance, medical manufacturers rely on this tech to create those tiny titanium bone screws with incredibly fine 50-micron threads needed for orthopedic implants. Meanwhile, researchers are using aluminum microfluidic molds made through CNC processes for their lab-on-a-chip diagnostic devices. And don't forget about the telecom sector where copper waveguide arrays fabricated by these machines play a crucial role in building out 5G infrastructure. Looking at aerospace applications, around two thirds of all miniaturized sensors actually depend on CNC machined housings that maintain tolerances below plus or minus 2 microns to ensure planes fly safely. Even in the world of photonics, specialized Swiss type CNC machines continue to produce fiber optic connectors with amazing precision down to sub micron levels of concentricity requirements.

Trends: Miniaturization, integration in smart devices, and rapid prototyping

As consumers want their smart devices to get tinier and their phones to fold up neatly in pockets, manufacturers are seeing growing demand for really tiny parts. Think about those super slim hinges made from aluminum that have to be less than 3mm thick for these gadgets. According to research published by MIT last year, companies using computer controlled machining instead of 3D printing can cut down how long it takes to develop miniature medical instruments by almost half. Some factories now combine traditional cutting techniques with chemical treatments to polish stainless steel tools used during biopsies down to surfaces smoother than 0.1 micrometers. This level of precision makes these medical instruments work better and causes fewer problems when they come into contact with human tissue.

Future outlook: AI-driven control, automation, and next-gen hybrid systems

Manufacturers are adopting AI-driven process optimization that adjusts spindle speeds in real time based on sensor feedback, reducing part rejection rates by 28% in pilot programs. Next-generation hybrid platforms combine micro-EDM with ultrasonic-assisted milling to machine tungsten carbide dental burs with 30 μm cutting edges at 98% first-pass yield.

Cost-efficient production through optimized workflows and scalability

By integrating automated tool changers and vacuum workholding, high-volume micro CNC operations achieve 22-second cycle times for brass electrical contacts while maintaining ±1.5 μm positional accuracy–boosting throughput by 60% since 2021 compared to manual setups. These efficiencies make micro CNC a scalable solution for precision manufacturing across industries.
